Vdawg’s H3 build

[Vdawg1115]



[Vdawg1115]



[Vdawg1115]



[Vdawg1115]

Rear axle positioned brackets tacked in place



[Vdawg1115]



[Vdawg1115]

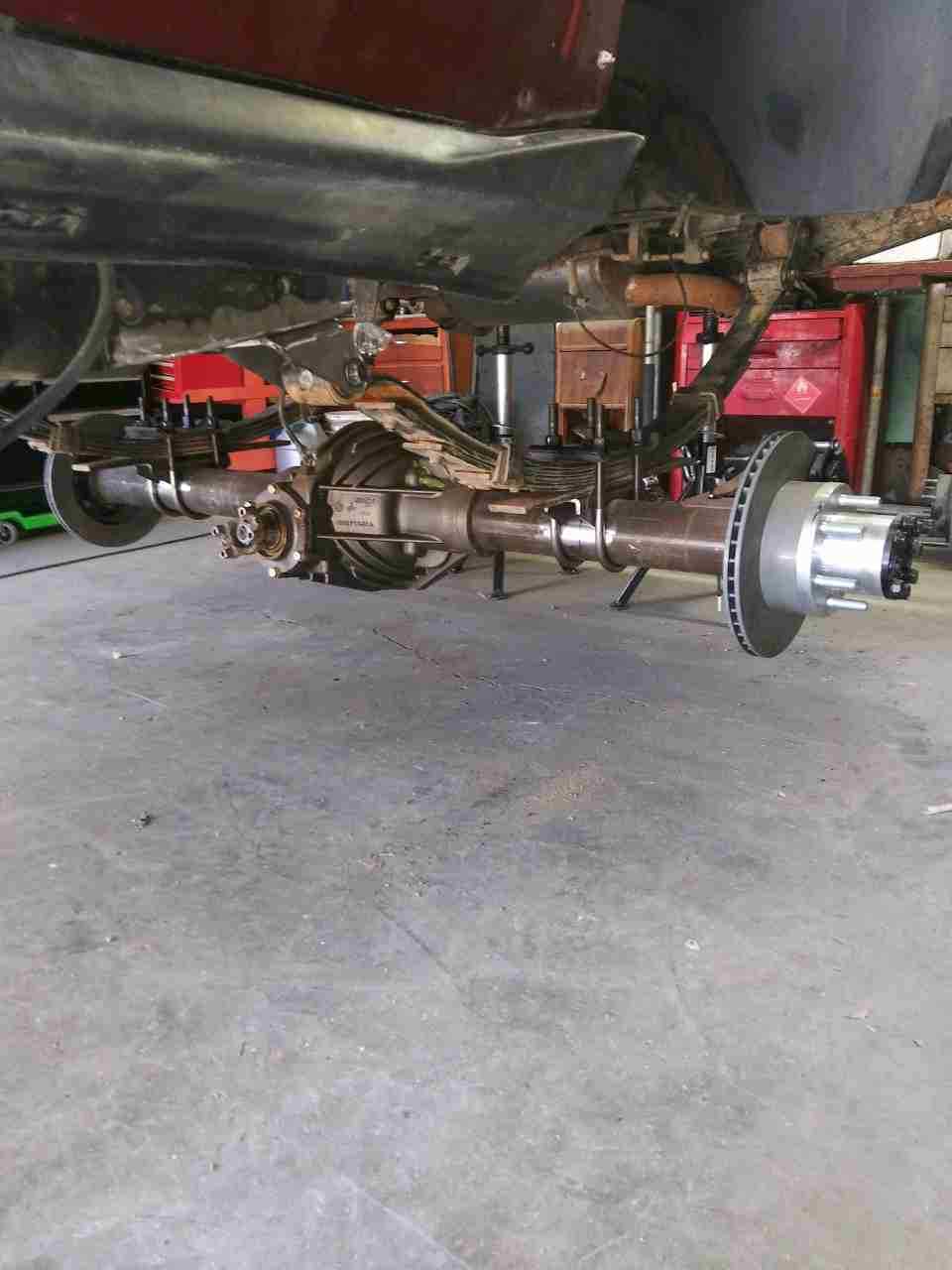

Spring over is done



[Vdawg1115]

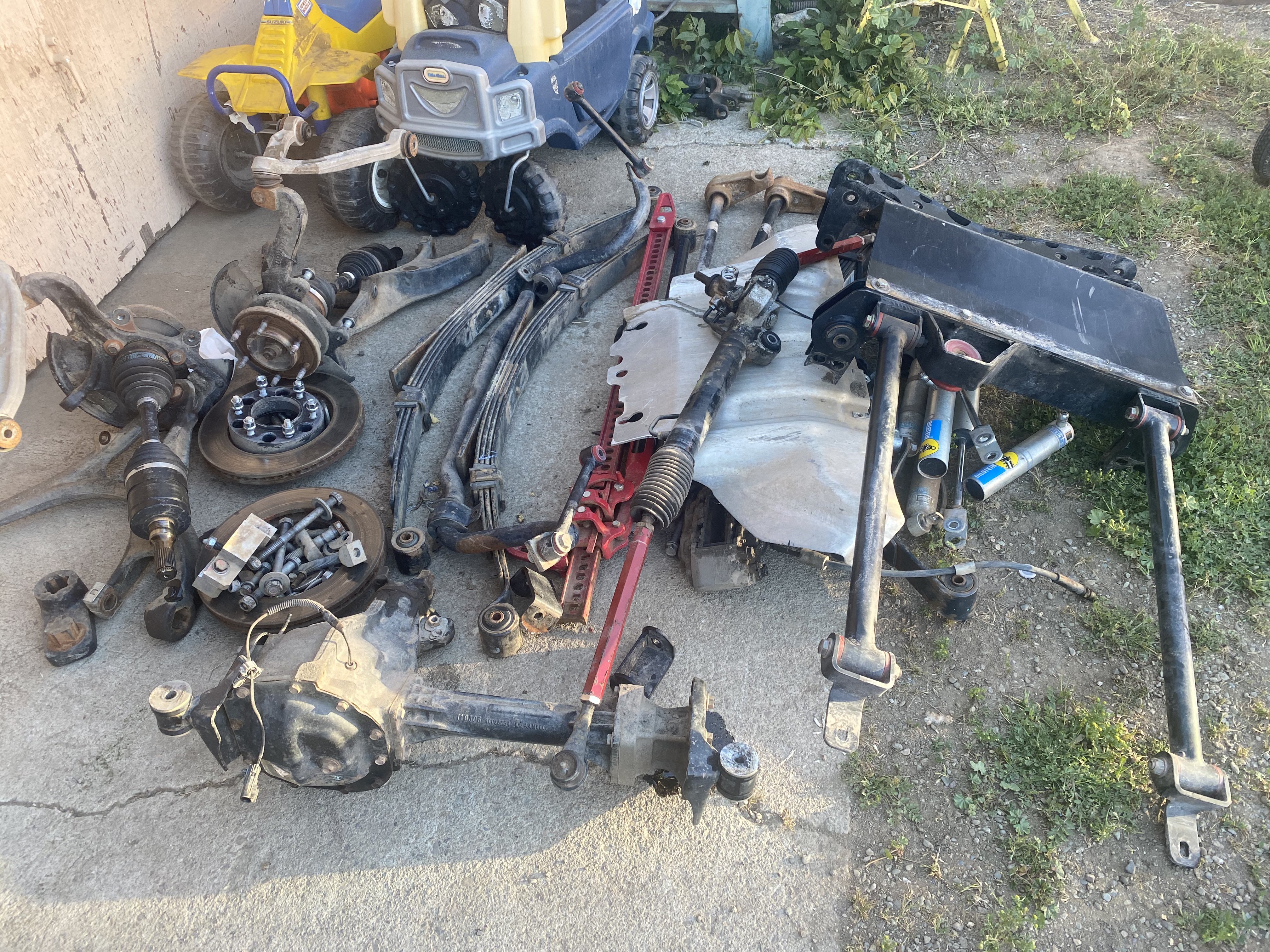

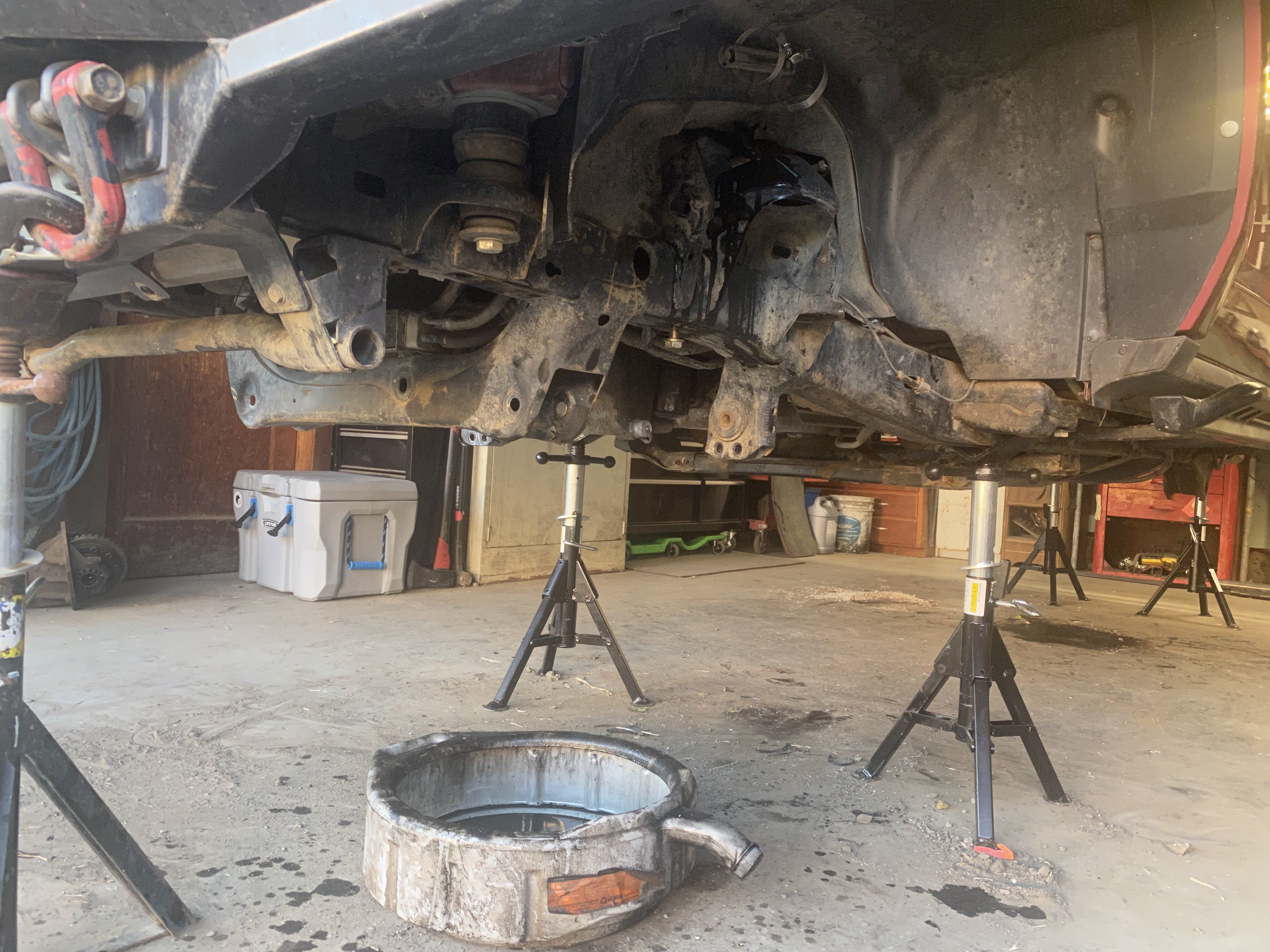

Front suspension gone. Prepped for frame plates



[Vdawg1115]

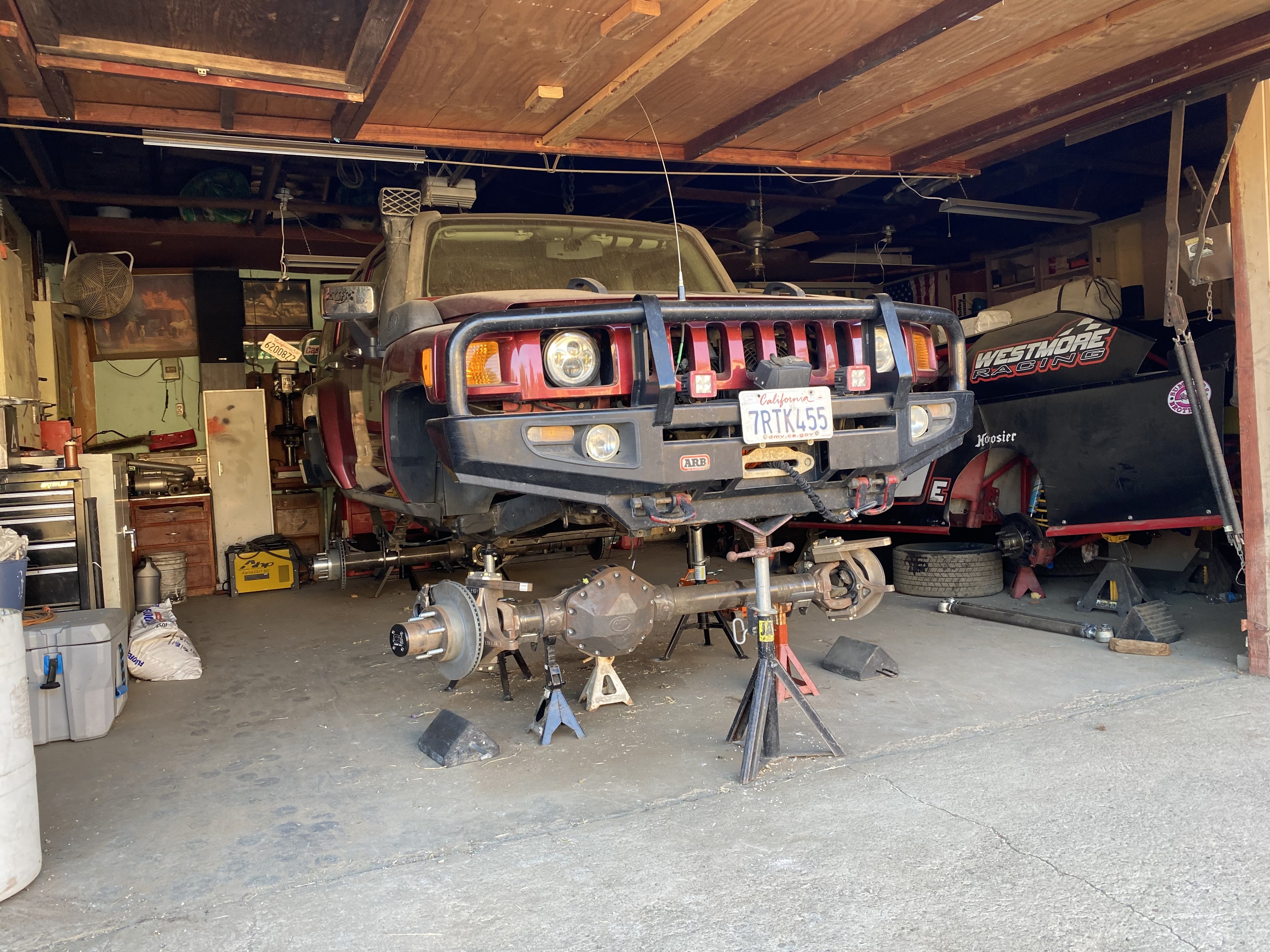

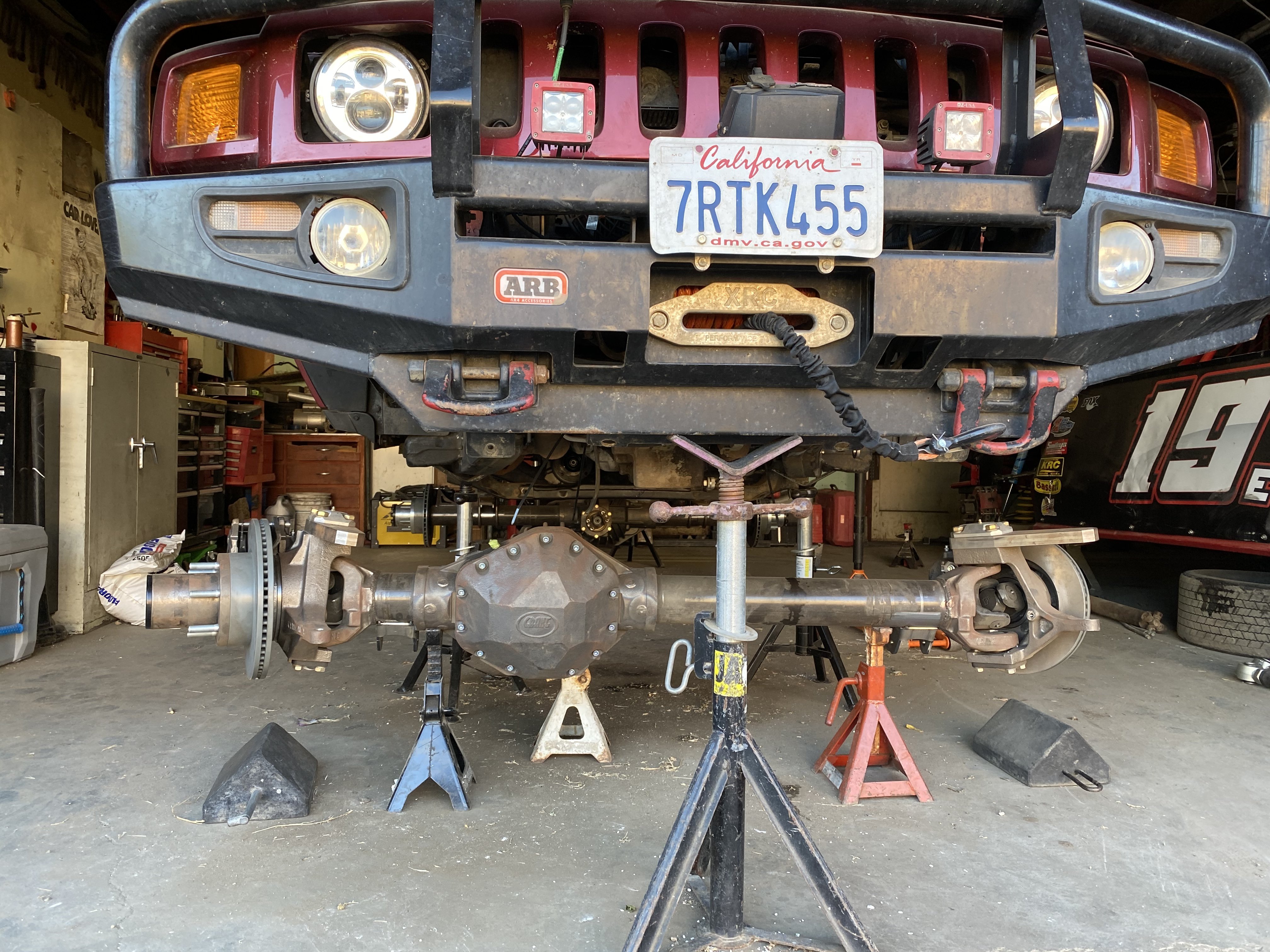

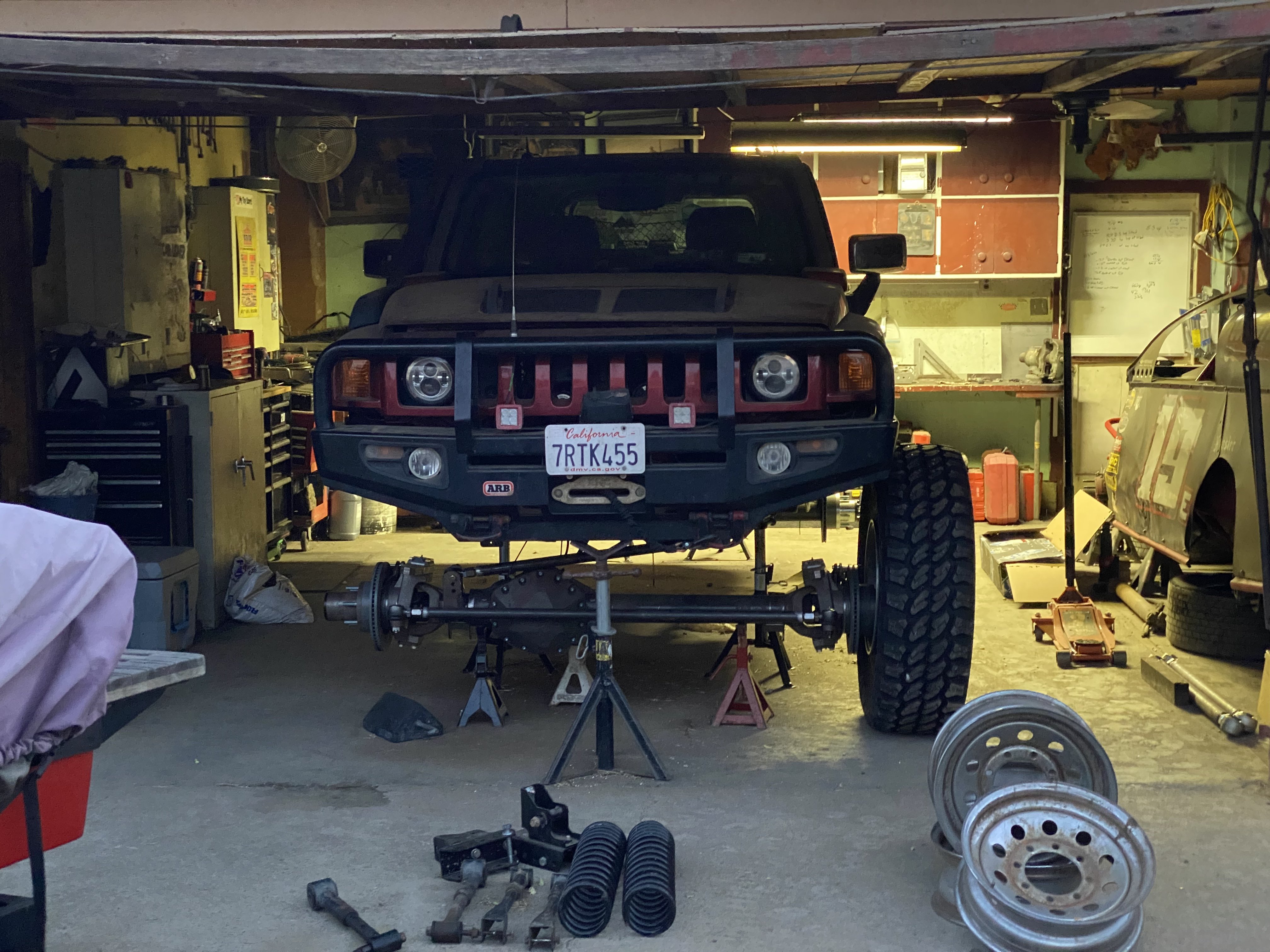

Front axle positioned



[Vdawg1115]

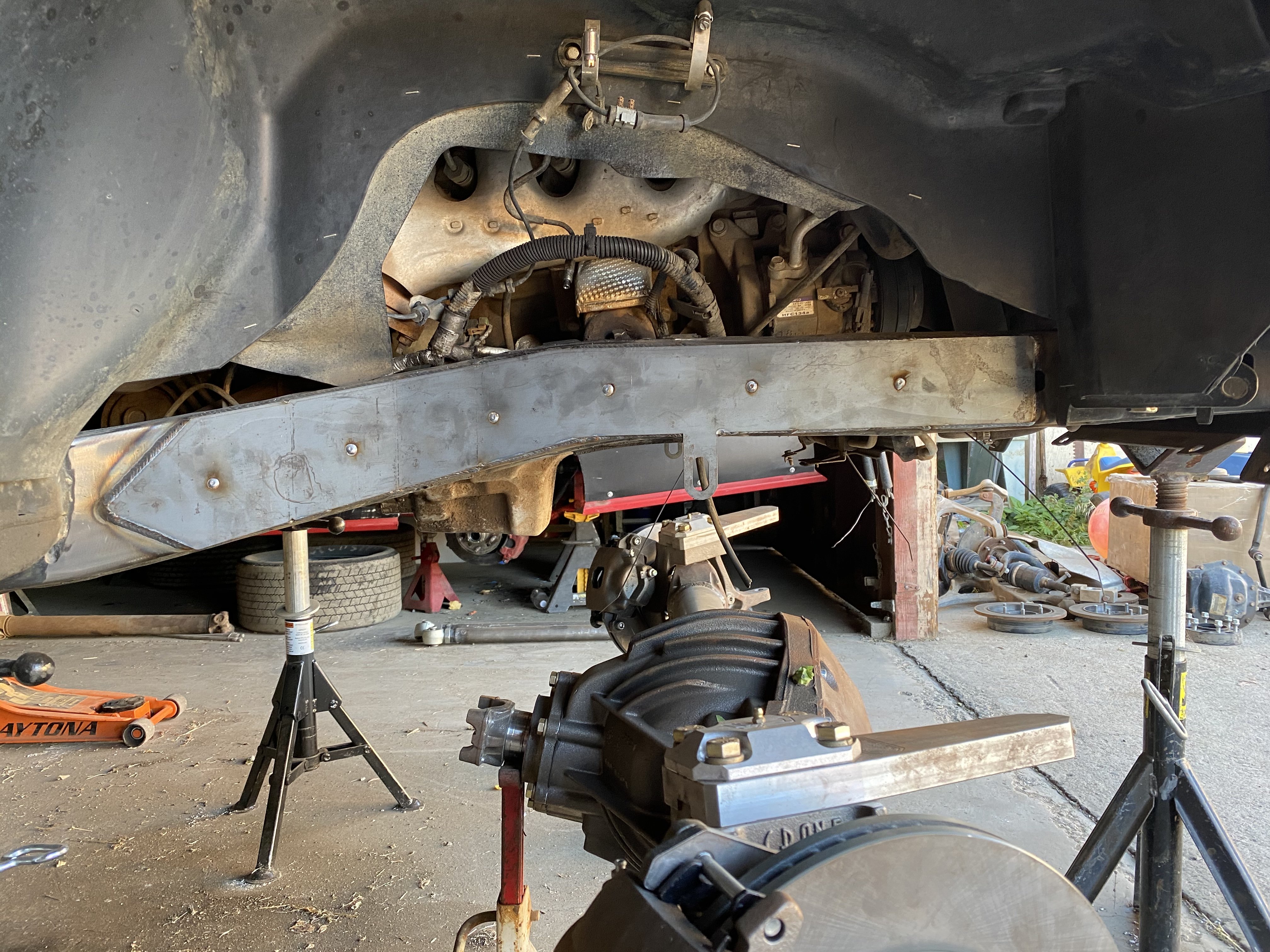

Frame
plates are on



[Vdawg1115]



[Vdawg1115]

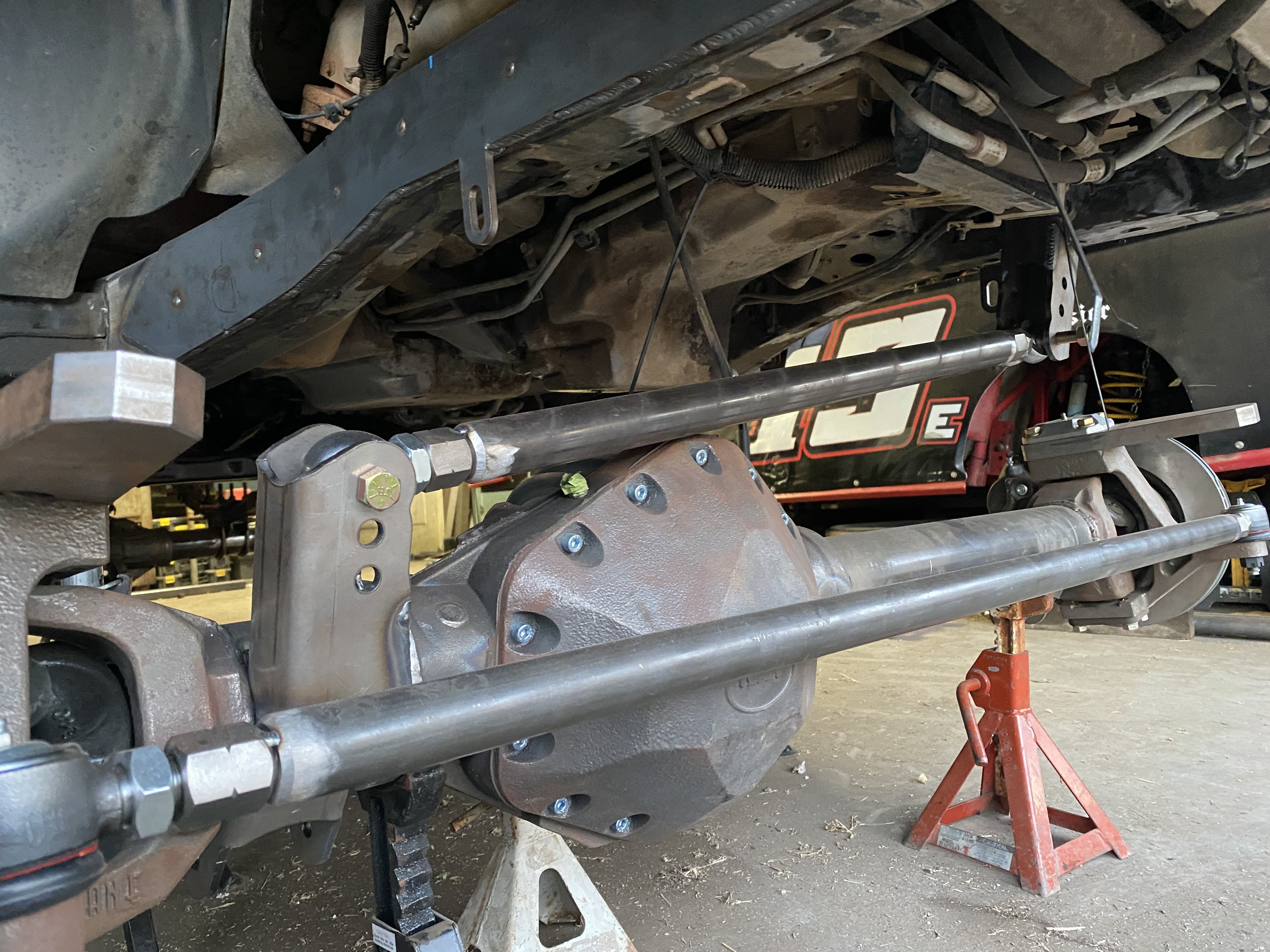

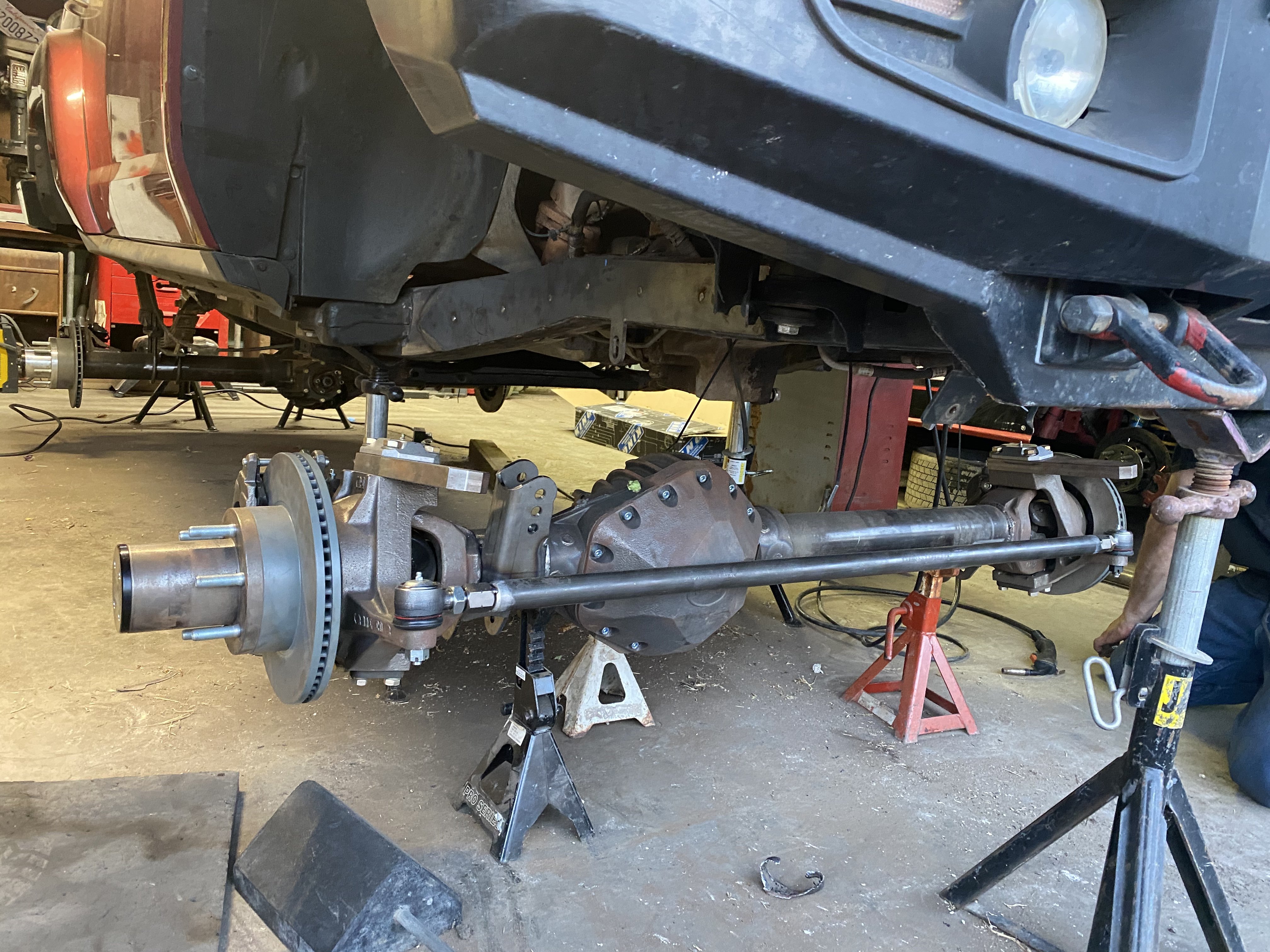

Tie rod measured and tacked



[Vdawg1115]

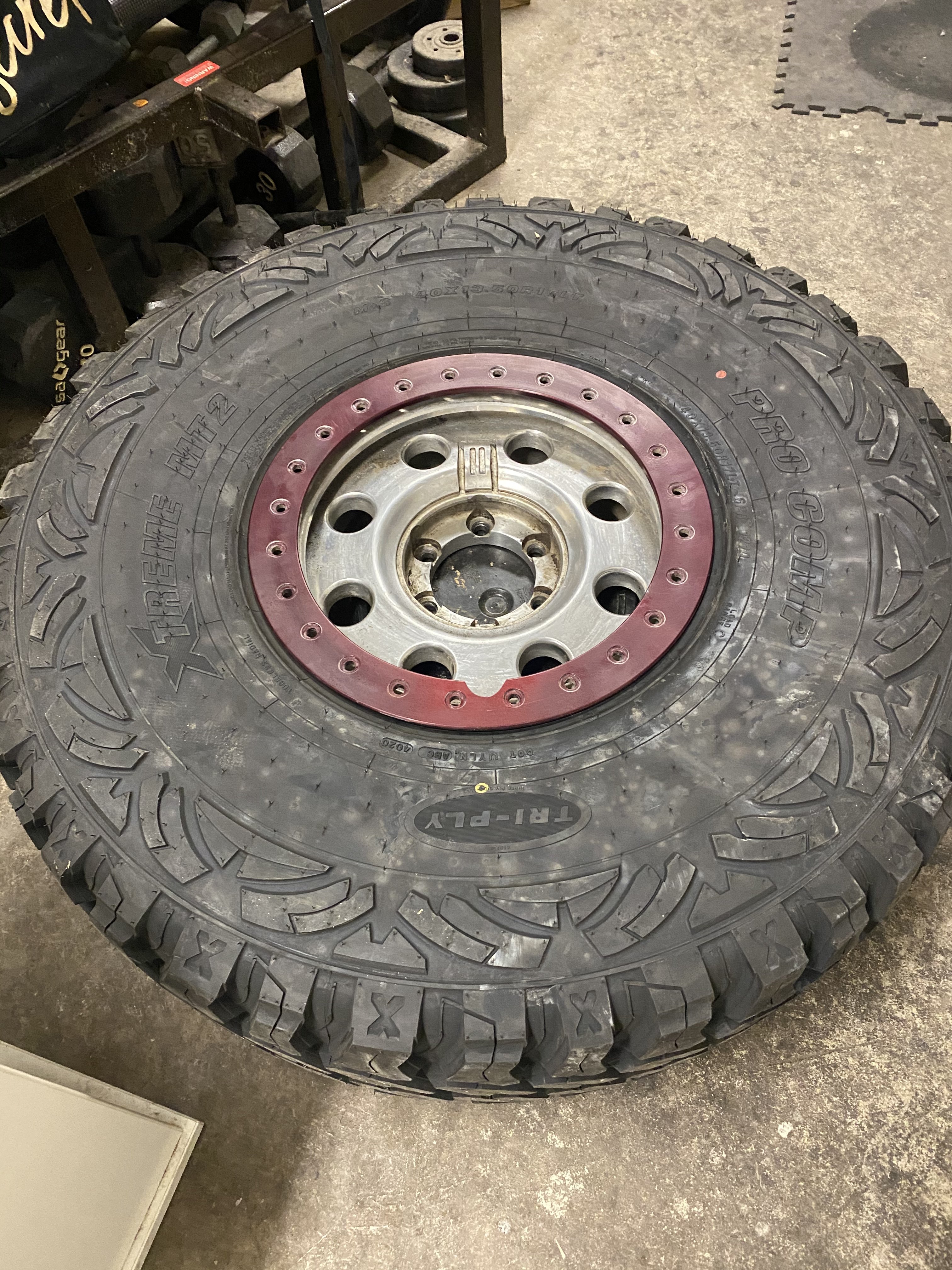

Started mounting all the tires to the beadlocks. A long and meditative process



[Vdawg1115]

Trackbar tacked in place. We originally started with an inside the frame upper mount, but ended up using an outside frame mounted upper trackbar mount



[Vdawg1115]



[Vdawg1115]



[crwalkerasla]

And I thought that I had big plans for my rig. Looks like quite the endeavor. Can't wait to see how it looks when all back together.



[Gtown]

View attachment 27820

Any of these parts up for sale?



[Vdawg1115]

Any of these parts up for sale?

rancho was claimed before SAS parts were acquired. Front diff already gone. I may have some factory stuff here and there.



[Gtown]

rancho was claimed before SAS parts were acquired. Front diff already gone. I may have some factory stuff here and there.

You still got those tie rods or wheel spacers?



[Vdawg1115]

You still got those tie rods or wheel spacers?

I need to confirm the tie rods, but I actually have two sets of wheels spacers. Both are Bora and hubcentric for the H3. 2” and 1.5”. The 2” spacers have maybe 100 miles on them, the 1.5” have several thousand miles.



[Vdawg1115]

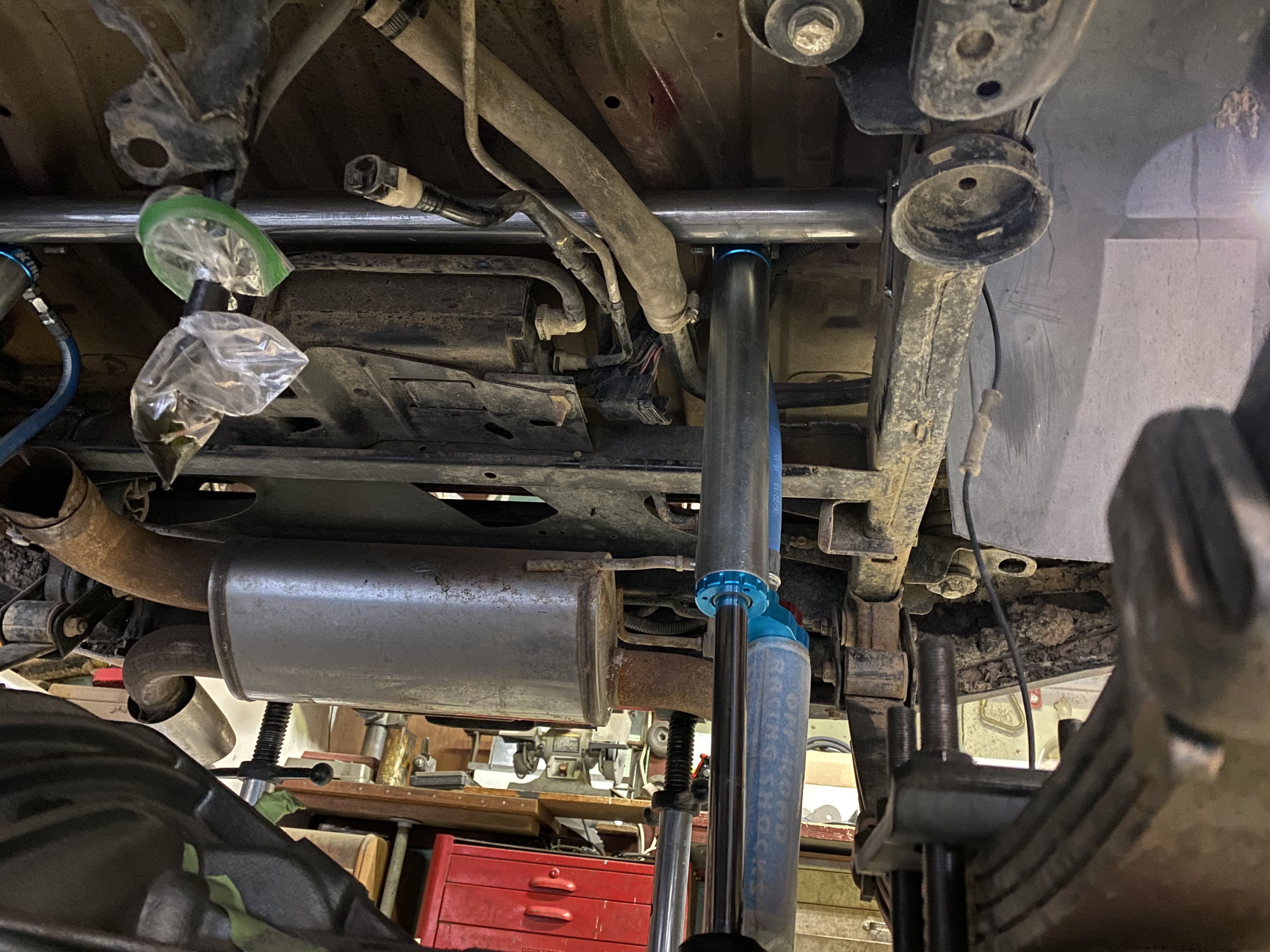

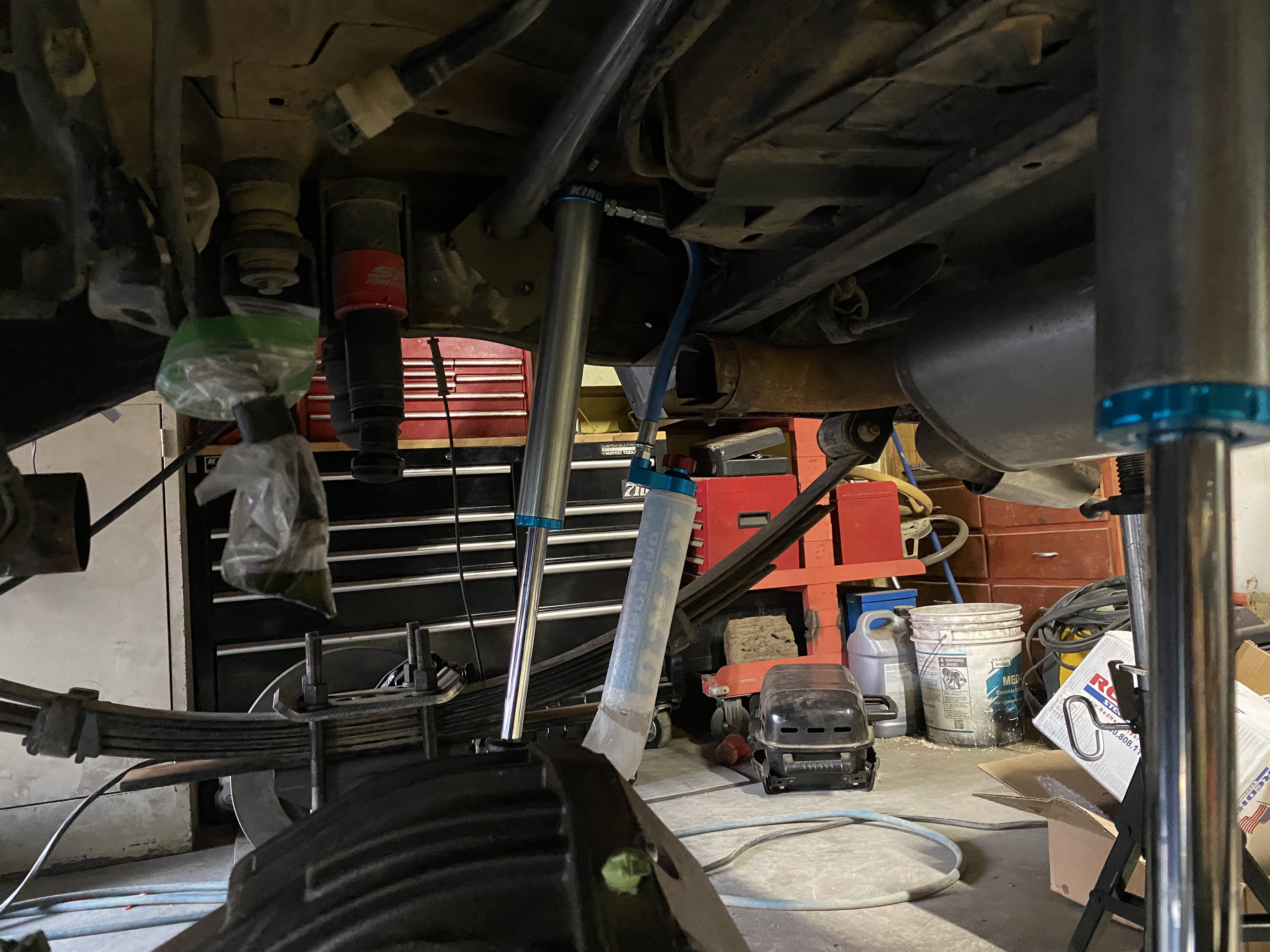

The rear shocks are King 2.5” shocks with a 10” stroke, they’re pretty long so we did a custom crossmember to mount the shocks higher up



[Vdawg1115]



[Vdawg1115]

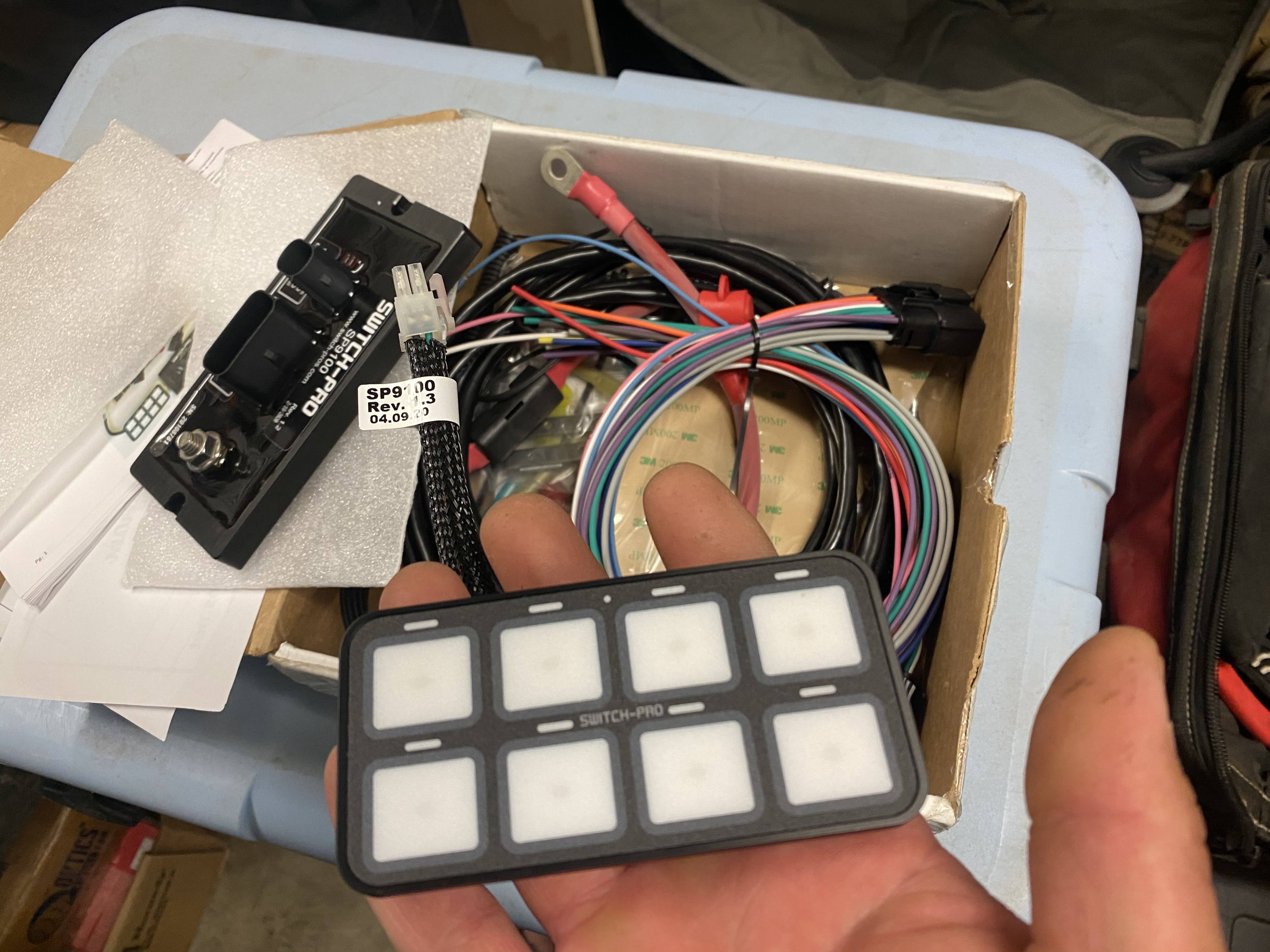

Gonna use a switchpro to consolidate the ARB Compressor and front and rear ARB lockers.



[Vdawg1115]

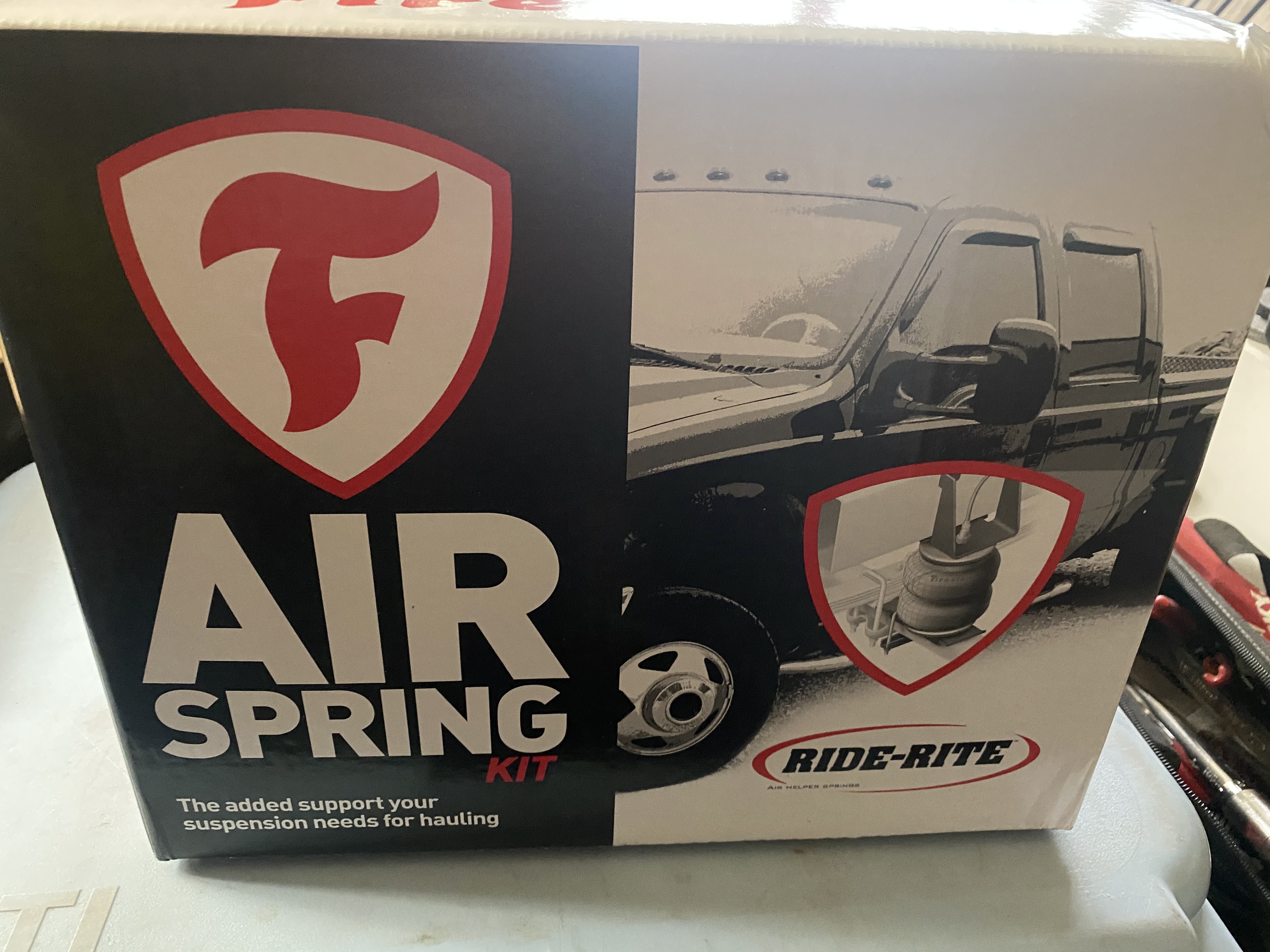

Gonna put airbags in the back since
i do tow an Overland trailer
